Power supply: AC110-240V，50/60Hz
Light source: high power 700W white light LED, 6800K
LED life: 20,000 hours
CRI: ≥74 / ≥90
Horizontal scanning: 540° or 630° (16 bit precision scanning), vertical scanning: 270° (16 bit precision scanning), the advanced scanning system is faster, stable and quieter, with automatic error correction reset function
Uniform and smooth CMY+CTO color mixing system
1 color plate: 7 fixed color plates + white light, half-color effect, color plates can be positioned arbitrarily, with rainbow effect of bidirectional rotation
1 rotating gobo plate: 6 plug-in rotating gobos + white circle, with pattern jitter and pattern arbitrary positioning function
1 fixed pattern plate: 8 plug-in fixed pattern pieces + white circle, with pattern jitter function
Channel: 36 international standard DMX512 channels
Prism disk: Rotating 3 prisms + 6 linear-prism, can be rotated in the forward and reverse directions, can be superimposed on prisms, and has a prism positioning function
Focusing: electronic focusing, ultra-smooth focus adjustment
Aperture: 5%~100% smooth adjustment
Strobe: the frequency can reach up to 25Hz, and random strobe and pulse strobe can be selected
Dimming: 0~100% linear dimming
Atomization: 0~100% linear atomization
Magnification: 4.5°~50° linear zoom
Cutting disc: a set of controllable light spot cutting angle system composed of 4 corner cutting pieces. The whole cutting angle system can be rotated by 90°. Through precise control of the light cutting piece, it can create triangles, rhombuses and rectangles in any direction. Equal shape spot

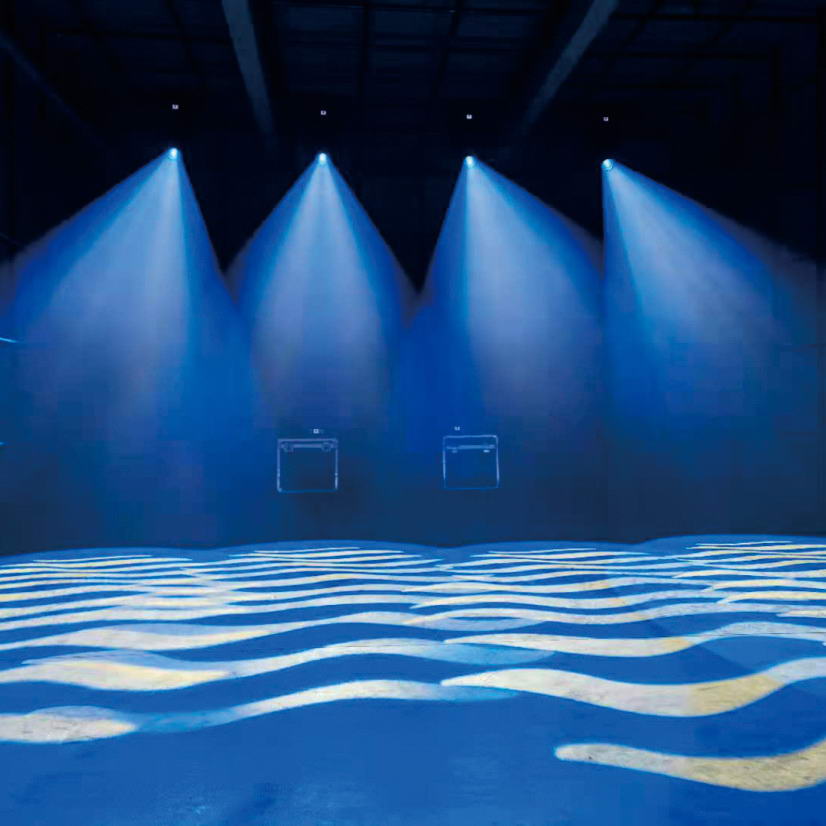

Effect panel: super dazzling simulation of dynamic flames, gurgling water and other dynamic effects
Touch color LCD display
With RDM function
Size: 510L×345W×800H(mm)
Net weight: 40kgs
Gross weight: 43kgs
